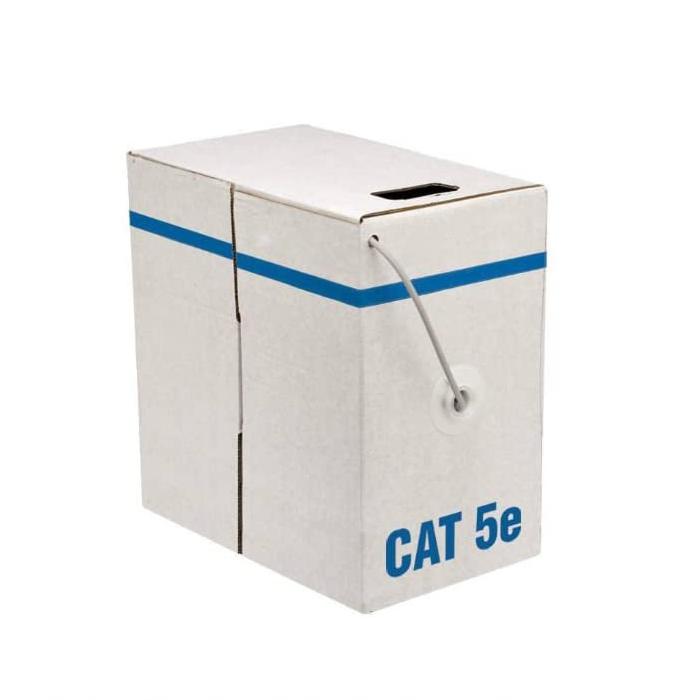

CAVO LAN CAT. 5E UTP 305MT

Description

Cable, stranded by pairs, used for transmission of digital signals with high speed of transmission. Suitable for setting computer systems for data transmission, measuring and control systems with proper resistance to electromagnetic influences.

&nbsp

Construction

• CCA-wires - 24 AWG 0,51 mm, acc. to IEC 60228
• Insulation: PE compound
• Cable bundle: 4 stranded pairs
• Outer sheath: PVC compound
• Outer sheath colour : for PVC-grey
• Insulation colour of stranded pairs - core a / core b:

- white with blue ring / blue

- white with orange ring / orange

- white with green ring /green

- white with brown ring / brown

Technical data

• Ambient temperature: -30&deg C to +50&deg C
• Temperature of laying: min. 0&deg C
• Characteristic Impedance: 100 &Omega &plusmn 15&Omega
• Loop resisistance: &le 192 0/ km
• Unbalance of loop resistance: &le 3%
• Insulation resistance: &ge 150 M&Omega x km
• Operating capacity: &le 55,8 nF/km
• Cable diameter: 5 mm

~Scheda Tecnica~:Colore=Grigio~:Marca=ELMARK~:Garanzia=5+2~:Diametro esterno=5~:*Nota=Prezzo per un metro~:Modello=CCA Cat. 5e~
