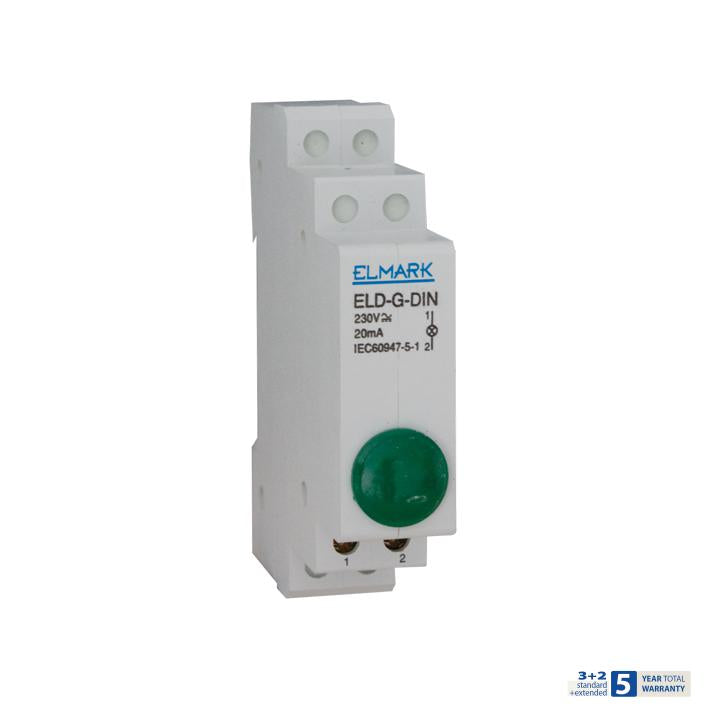

ELD-G-DIN SEGNALE LUCE VERDE 230V

€4,90 EUR
 per
Imposte incluse.
Ultimi 5 Pezzi Disponibili. Ordina Ora!


  • Sku: 401500
  • Barcode: 3,80E+12

DESCRIZIONE PRODOTTO

Technical characteristics:
- Insulation voltage: 660V 50/60Hz
- Surge voltage wear resistance: 6000V
- Rated current: up to 10А (230V АС)
- Short circuit protection: breaker 10А gG outside of the circuit
- Rated consumed current (for indicators and buttons combined with indicators): <20mA
- Wear resistance (indicators): >2000h
- Mechanical wear resistance (buttons): 1х106 commutation cycles
- Mechanical pressure strength:
&nbsp = At closing: 20N
&nbsp = At opening: 8N
- Operating temperature: -20&deg to 65&deg С
- Humidity: 35-85%RH
- Connecting wires torgue: 0.15Nm
- Section of the conductor : 1х0.5 1х0.75 1х1 1х1.5 1х2.5mm2
- Plastic: resistant to UV rays


Mounting:&nbsp On a DIN rail

Standard:&nbsp EN60947-1 EN60947-5-1

&nbsp

~Scheda Tecnica~:Tensione nominale=230V~:Colore=Verde~:Marca=ELMARK~:Garanzia=3+2~
