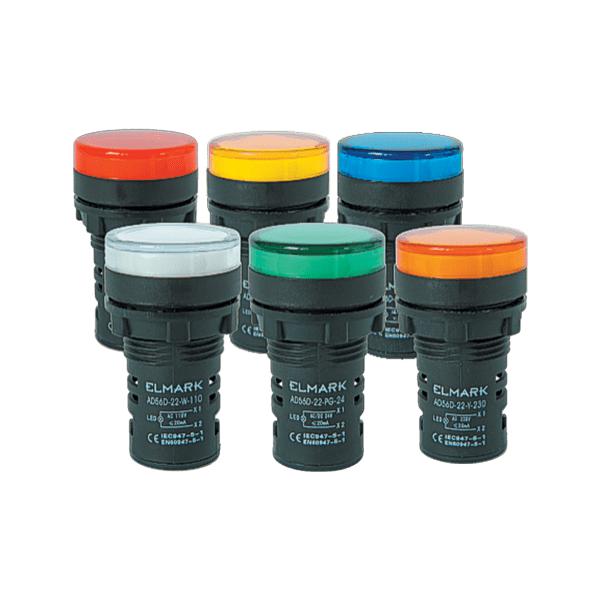

INDICATORE LED AD56D-22-PG-24 VERDE 22MM 24V AC/DC

Technical characteristics:
- Insulation voltage: 660V 50/60Hz
- Surge volatge wear resistance: 6000V
- Rated current: 6А(230V АС) 0.3А(230V DC)
- IP code: IP20
- Short circuit protection: breaker 10А gG outside of the circuit
- Mechanical wear resistance: 1Ñ…106 commutation cycles
- Operating temperature: -20&deg to 70&deg С
- Humidity: 35-85%RH
- Connecting wires torque: 0.15Nm
- Section of the conductor: 1Ñ…0.5 1Ñ…0.75 1Ñ…1 1Ñ…1.5 1Ñ…2.5mm2

Mounting:
- To a flat metal or plastic surface with thickness: max 4m
- Size of the opening: &Oslash 22.5mm

Standards: EN60947-1 EN60947-5-1
