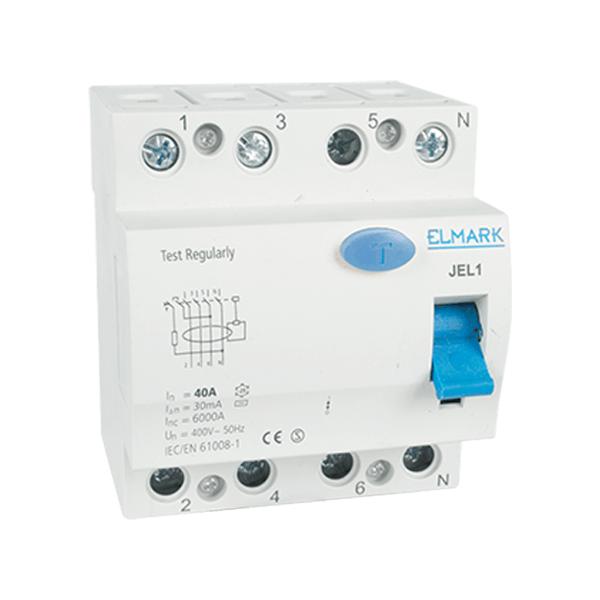

INT. DIFFERENZIALE JEL1 4P 25A/30MA

&nbsp

Technical characteristics:
- Rated current: 10-100 А
- Rated operating voltage: 230/400V 50/60Hz
- Rated residual current: 30/100/300/500 mA
- Number of poles: 2/4
- Surge voltage wear resistance: &ge 2000V
- Short circuit current wear resistance: 6000А
- IP code: IP>20
- Ambient temperature: -10&deg &divide 65&ordm С
- Installation altitude: up to 2000m

Mounting: Vertical on a DIN rail

Standards: EN 61008-1 EN 61008-2 EN 60947-1

~Scheda Tecnica~:Tensione nominale=400V~:Corrente nominale=25A~:Numero dei poli=4~:Marca=ELMARK~:Dimensione complessiva (mm)=L:72/W:70/H:81~:Capacità di interruzione=6 kA~:Corrente di dispersione=30 mA~:Garanzia=7+0~:Modello=JEL1~
