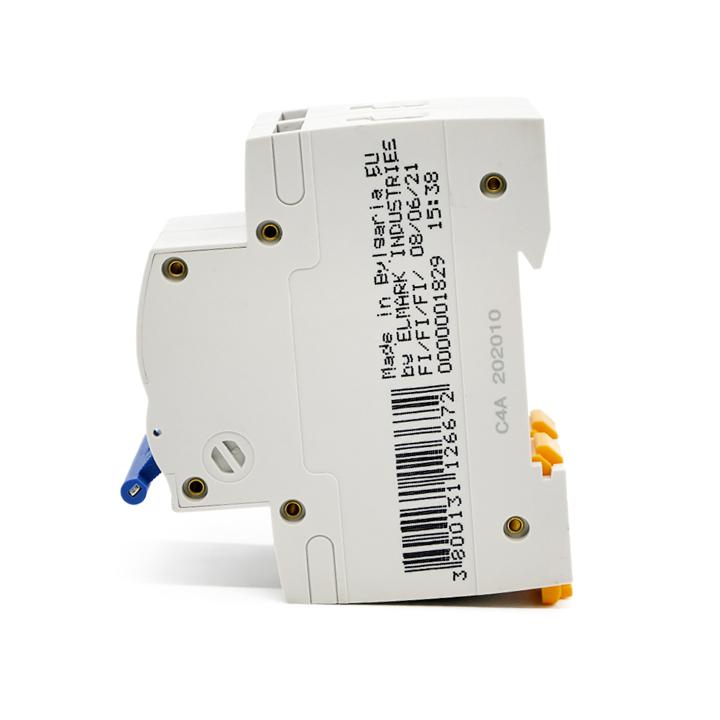

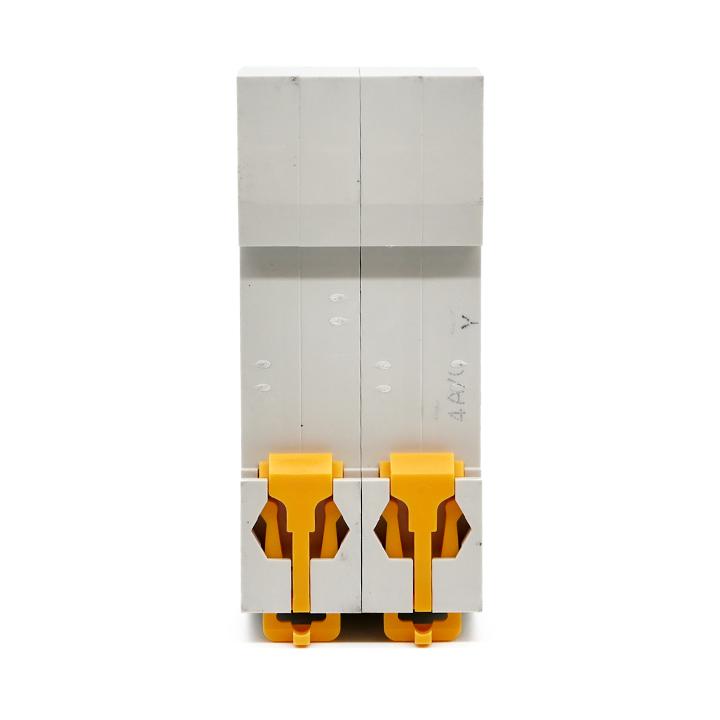

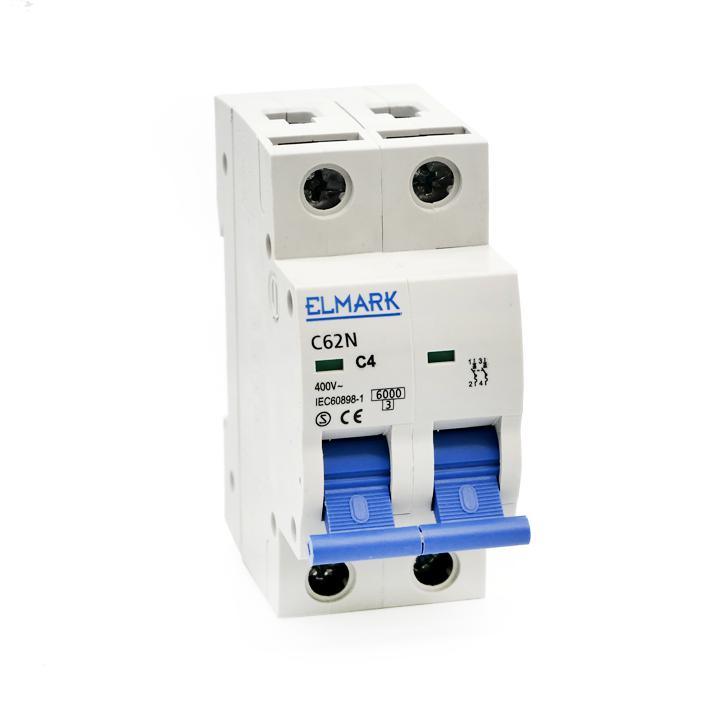

INT.MAGNETOTERMICO C4A 6KA 2P CURVA C

Technical characteristics:
- Rated operating voltage: 230/400V 50/60Hz
- Rated current: 1-63А
- Breaking capacity: 6000А
- Poles: 1, 2, 3, 4
- Tripping curve: B, C
B - The maximum current release breaks between 3 and 5 In used to protect long circuits and generators
С - The maximum current release breaks between 5 and 10 In used to protect main power supply cables and conventional consumers
- Electrical wear resistance (number of cycles): &ge 8000
- Mechanical wear resistance (number of cycles): &ge 50000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65&deg С&plusmn 2&deg С

Mounting: Vertically on a DIN rail

Standard: EN60898-1

~Scheda Tecnica~:Tensione nominale=230V~:Corrente nominale=4A~:Numero dei poli=2~:Marca=ELMARK~:Dimensione complessiva (mm)=L:72/W:36/H:81~:Curva di spegnimento=C~:Capacità di interruzione=6kA~:Garanzia=7+0~:Modello=C60N~
